How To Find Essential CNC Tooling and Measurement Tools Behind High-Accuracy Machining
High-accuracy machining doesn’t happen by accident. It’s the result of carefully selected tooling, stable setups, and precise inspection practices working together. Whether you’re running a high-volume production environment or managing short-run precision parts, the tools you choose directly affect surface finish, dimensional control, and overall repeatability.
Tight tolerances demand more than just a capable CNC machine. They require rigid toolholding systems, high-quality cutting tools, and inspection equipment that can verify measurements down to the smallest increment. Understanding how to evaluate essential CNC tooling and measurement tools is key to maintaining consistent, high-accuracy machining performance.
Choosing Precision CNC Tooling
The foundation of precision machining begins at the spindle. If your tooling lacks rigidity or alignment, even the most advanced CNC equipment will struggle to maintain tight tolerances.

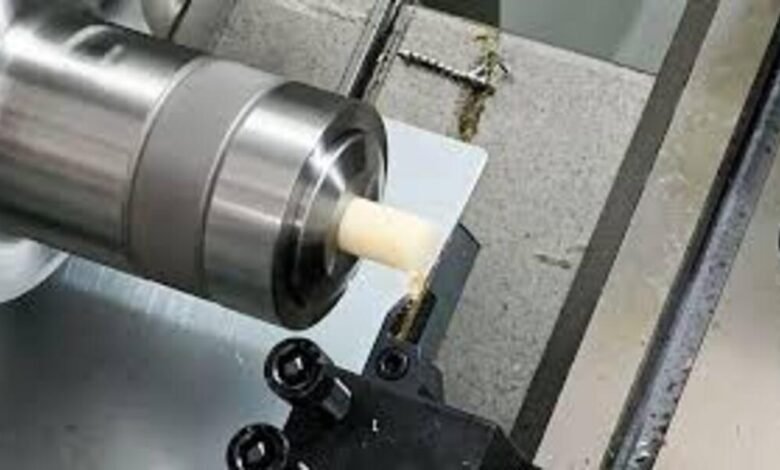

One of the most critical components in CNC turning applications is the toolholding system. High-quality vdi tool holders provide the stability and repeatability required for accurate cutting. Designed for turret-based CNC lathes, these holders maintain precise alignment between the cutting tool and the workpiece, minimizing runout and reducing vibration during operation.
When evaluating CNC tooling for high-accuracy machining, focus on several essential factors:
Rigidity and Stability
Tool deflection can quickly lead to dimensional inaccuracies and inconsistent finishes. Rigid toolholders reduce chatter and maintain predictable tool engagement, especially during heavy roughing or fine finishing passes.
Runout Control
Even minor runout can compromise tool life and dimensional accuracy. Precision-machined toolholders help maintain concentricity, allowing cutting edges to perform evenly and consistently.
Repeatable Setup
In high-production environments, repeatability matters. Toolholders that allow quick installation while maintaining consistent positioning reduce setup errors and improve workflow efficiency.
Application Compatibility
Not all tooling systems are interchangeable. Ensure that your holders match your machine specifications, turret style, and machining requirements. Investing in the correct tooling configuration prevents performance bottlenecks later in the process.
Selecting the right CNC tooling is not just about durability—it’s about building a stable machining environment that supports tight tolerances from the first pass to the final part.
Selecting Accurate Measurement Tools
Precision cutting must be matched by precision inspection. Without reliable measurement tools, it’s impossible to verify that your machining process is meeting specification requirements.
One of the most versatile inspection tools found in machine shops is the caliper. Calipers are commonly used for measuring outside diameters, inside diameters, and depths. They offer quick, convenient measurements that are ideal for in-process checks and general dimensional verification.
However, while calipers are extremely useful, they may not provide sufficient resolution for ultra-tight tolerances. When parts require higher accuracy, a micrometer becomes essential. Micrometers deliver finer resolution and increased measurement control, making them ideal for verifying critical dimensions where even a thousandth of an inch matters.
When selecting measurement tools for high-accuracy machining, consider the following:
Resolution Requirements
Your inspection tools must exceed the tolerance range of the part. If your drawing calls for ±0.001”, your measurement tool should offer finer resolution to ensure reliable verification.
Consistency and Calibration
Regular calibration ensures your tools provide dependable readings. Establish a calibration schedule to maintain traceable and accurate measurement standards.
Durability for Shop Conditions
Coolant exposure, chips, and daily handling can affect tool longevity. Choose measurement instruments built for industrial environments to maintain performance over time.
Ease of Use
Measurement tools should provide smooth operation and clear readings. Tools that are easy to use reduce operator error and improve inspection efficiency.
By pairing accurate inspection equipment with stable tooling systems, shops create a closed-loop process where cutting and verification support one another.
Building a Complete High-Accuracy Machining Strategy
Finding essential CNC tooling and measurement tools is not about purchasing the most expensive equipment—it’s about building a balanced system that supports consistent performance.
Start by evaluating your current machining challenges. Are you experiencing chatter? Dimensional drift? Inconsistent finishes? Often, the root cause lies in toolholding rigidity or insufficient inspection practices. Upgrading to high-quality toolholders and precision measurement tools can significantly reduce scrap and rework.
Next, implement standardized setup and inspection procedures. Define torque values, measurement checkpoints, and documentation practices. Consistency across operators helps reduce variability in part quality.
Finally, prioritize continuous improvement. Monitor tool wear patterns, track tolerance trends, and regularly assess equipment condition. High-accuracy machining requires ongoing attention to both tooling and measurement systems.
Conclusion
High-accuracy machining depends on the right combination of stable toolholding and precise inspection. Quality vdi tool holders provide the rigidity and repeatability necessary for accurate cutting, while reliable measurement tools like a caliper and micrometer ensure parts meet specification before they leave the shop floor.
By carefully selecting essential CNC tooling and measurement tools—and integrating them into a consistent, well-documented process—you create a machining environment built on precision, efficiency, and reliability. In today’s competitive manufacturing landscape, that level of accuracy is not optional—it’s essential.
